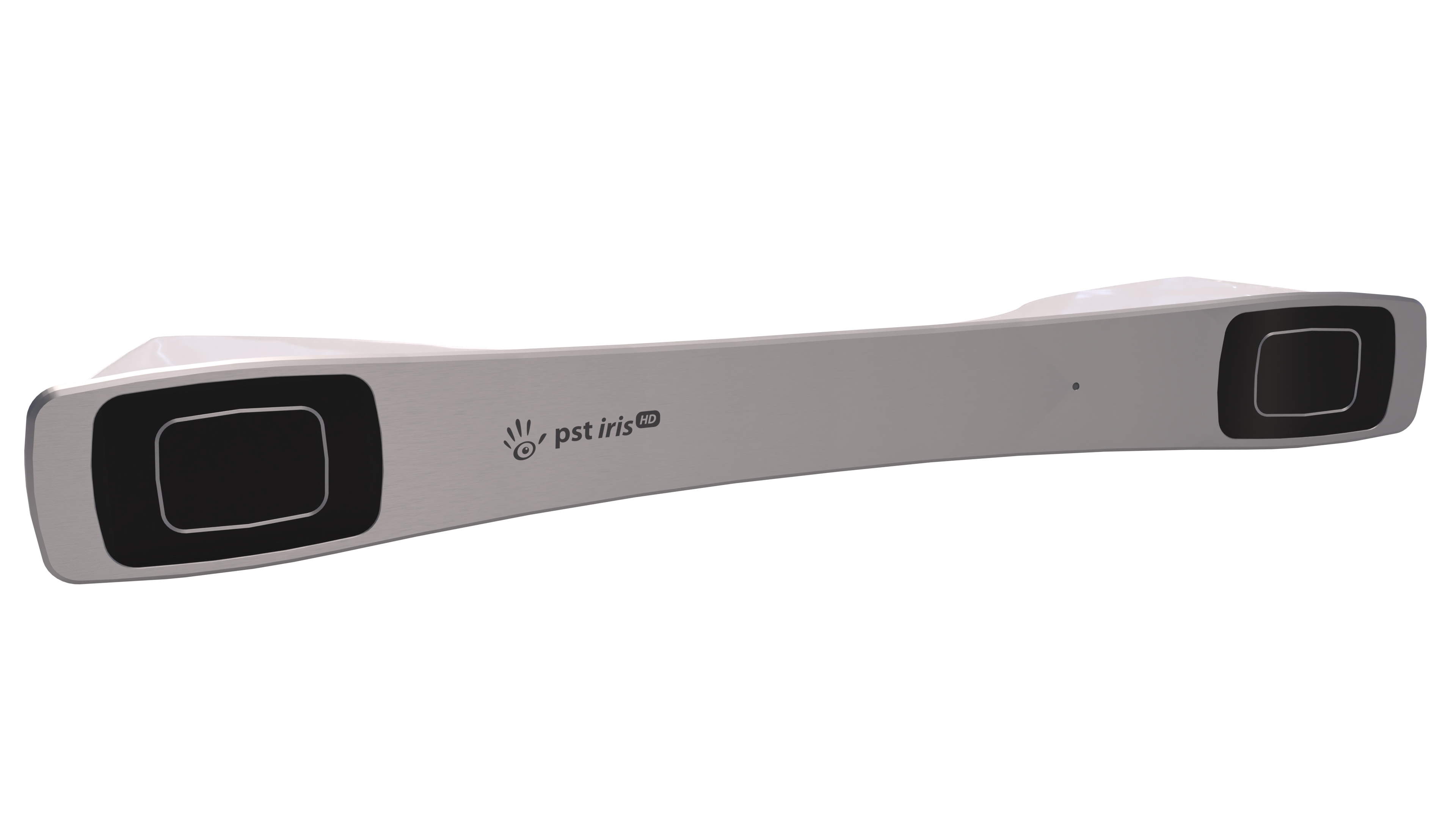

PST Iris HD Specifications

Performance

  • Accuracy: Position: < 0.5 mm RMSE
    Orientation: < 1 deg RMSE
  • Latency:15-25 ms (depending on the shutter time and the filter settings)
  • Refresh rate:Up to 200 Hz
  • Tracking distance:50 cm – 5 m, up to 7 m
  • Intended use:Recommended for tracking in front of screens > than 55″, powerwalls, tracking areas > 1.5 m

Usability

  • Set up:Plug and play
  • Calibration:Pre-calibrated unit
  • Origin definition:One click process – dedicated tool included
  • Units needed for 6 DoF tracking:One, each PST Iris HD is a full 6DoF motion tracker
  • Expandable tracking area:n/a
  • Aligning units:n/a
  • Ambient Conditions:Normal indoor lighting conditions

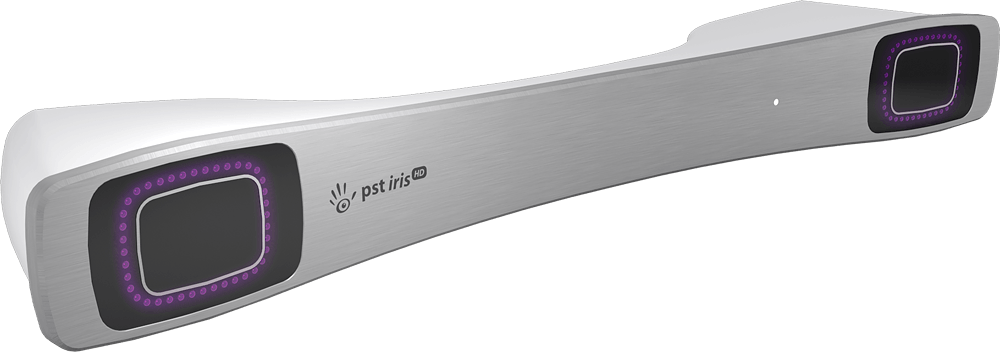

  • Illumination:Integrated IR LED illumination (wavelength 850nm). Flash illumination fully adjustable in PST Software Suite 5.0
  • Operating Temperature:15 – 35 deg. C

Hardware

  • Weight:Approx. 1.2 kg
  • Size:50.5 x 6 x 9.5 cm (W x H x D)
  • Mounting:1/4”-20 UNC tripod mounting point
  • Power supply:Output 9V, 40W. Input 100-240V, 50-60Hz
  • Power consumption:Max. 12 W

Devices and Markers

  • Number of targets:At least 15 independent 6DoF bodies. For instance: simultaneous head and object tracking
  • Markers:Passive (retro-reflective flat and spherical) – Active (LED)
  • Device creation:Simple procedure: mark, train and use new device in seconds

Interfaces

  • Processing:n/a
  • Tracking Application:PST Software Suite 5.0 (license included with each PST tracker)
  • Client operating system:Windows 7, 8 and 10 (32 and 64 bit) and Linux (64 bit)
  • Software interface:The tracker comes with an easy to use native C/C++ SDK and bindings for C# and Python. Interfacing is also supported via VRPN, trackd2, Dtrack emulation, data export to .CSV
  • Hardware interface:Requires two USB 3 ports each with full bandwidth and capable of providing 2.7 Watts min. and 5 Watts max. (ethernet connection to the PST available through the PST Software Suite 5.0)
  • Output:Positional coordinates (x, y, z), orientation angles, Euclidean transformation matrix
  • Synchronization:n/a
